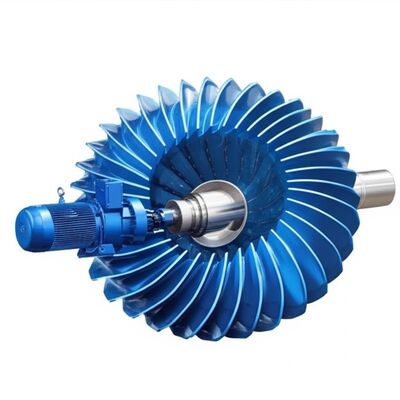

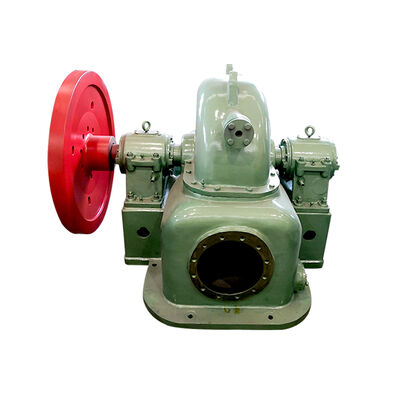

Dual Nozzles Pelton Hydro Turbine with Stainless Steel 0Cr13Ni4Mo Nozzle Ring and Up To 90% Efficiency for High-Pressure Hydroelectric Applications
Datos del producto:
| Nombre de la marca: | Wawushan |
| Certificación: | ISO9001 |
| Número de modelo: | CJA-202516 |
Pago y Envío Términos:
| Minimum Order Quantity: | 1 |
|---|---|
| Precio: | 50000 |
| Detalles de empaquetado: | Estándar |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Set Per Unit |
|
Información detallada |
|||
| Capacidad de potencia: | 1-200 MW | Número de boquilla: | Bocas duales |
|---|---|---|---|
| Anillo de la boquilla: | Acero Inoxidable 0Cr13Ni4Mo (CA6NM) | Tipo: | Turbina de impulso |
| Ventajas: | Corrosión de alta resistencia \ anti | cabeza del diseño: | 200m-600m |
| Eficiencia: | Hasta 90% o más | Tipo de corredor: | Solo o Multi-jet |
| Resaltar: | Dual Nozzles Pelton Hydro Turbine,Stainless Steel 0Cr13Ni4Mo Hydro Jet Turbine,Up To 90% Efficiency Water Impulse Turbine |
||
Descripción de producto
Double Cup or Split Bucket Pelton Hydro Turbine
High-efficiency hydroelectric turbine designed for flow rates of 1-200 m³/s and power capacity of 1-200 MW, ideal for high-head applications.
Product Overview
The Pelton Hydro Turbine is a highly efficient impulse turbine engineered for hydroelectric power generation in high-head applications ranging from 50 to 1000 meters. This hydro jet turbine converts the kinetic energy of high-velocity water jets into mechanical energy through an innovative double cup or split bucket design that maximizes energy extraction while minimizing water splashing and turbulence.
Key Features
- Product Name: Pelton Hydro Turbine
- Type: Impulse Turbine
- Efficiency: Up to 90% or higher for optimal energy conversion
- Nozzle Number: Dual nozzles for enhanced water jet control
- Flow Rate: Suitable for 1-200 m³/s, adaptable to various water flow conditions
- Nozzle Ring Material: Stainless Steel 0Cr13Ni4Mo (CA6NM) for durability and corrosion resistance
- Design: Hydro Jet Turbine ideal for high-pressure applications
- Operation: Utilizes impulse rather than reaction principles
- Application: High-Pressure Turbine optimized for mountainous and high-head water sources
Technical Specifications
| Product Name | Pelton Hydro Turbine |
| Type | Impulse Turbine |
| Water Head | 100m-800m |
| Design Head | 200m-600m |
| Nozzle Number | Dual Nozzles |
| Nozzle Ring | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
| Rated Speed | 750 r/min |
| Runner Type | Single or Multi-Jet |
| Bucket Design | Double Cup or Split Bucket |
| Advantages | High Strength, Anti-Corrosion |
Applications
The Wawushan CJA-2025 Pelton Hydro Turbine delivers high efficiency and reliability across various hydroelectric applications. With power capacity from 1 to 200 MW, it's suitable for small to large-scale projects including mountainous regions, hydroelectric power plants, micro-hydropower stations for rural electrification, industrial plants, and grid-connected facilities.
Customization & Ordering
Model: CJA-2025
Minimum Order: 1 unit
Price: $50,000
Supply Capacity: 100 sets per year
Delivery Time: 6 months
Payment Terms: L/C
Certification: ISO9001
Technical Support & Services
Our dedicated technical support team provides comprehensive services including installation guidance, routine maintenance advice, troubleshooting assistance, performance optimization, system diagnostics, spare parts identification, and upgrade recommendations. We offer on-site support and training sessions to ensure optimal performance and longevity of your turbine installation.
